Starway gooseneck lowboy semi trailers are designed for transporting excavators, construction equipment, and heavy machinery. We can supply 2, 3, and 4-axle lowboy trailers with load capacities ranging from 60 to 120 tons, special kinds of lowbed trailer can been customized according to your demand

To accommodate your specific transport needs and local regulations, we can customize hydraulic removable gooseneck lowboy trailers in various configurations.

Specification:

• Overall Dimensions: 16,000 mm * 3,000 mm * 2,500 mm
• Loading Capacity: 50-150 tons
• Axles: 2 Axles
• Tires: 24 units, available in 8.25R20, 10.00R20, 11.00R20, or 12R22.5
• Suspension: Available with mechanical suspension or air suspension
• Spring Leaf: 120 mm (width) x 16 mm (thickness) x 10 layers
• Landing Gear: JOST or FUWA brand
• Tare Weight: Approximately 9.5-19 tons
• Main Beam:
  • Height: 500 mm
  • Width: 230 mm
  • Side Beam: 250 I-beam (10/8/10)
  • Material: HG60 high-strength steel
• Bottom Platform: 5 mm thick, checkered plate

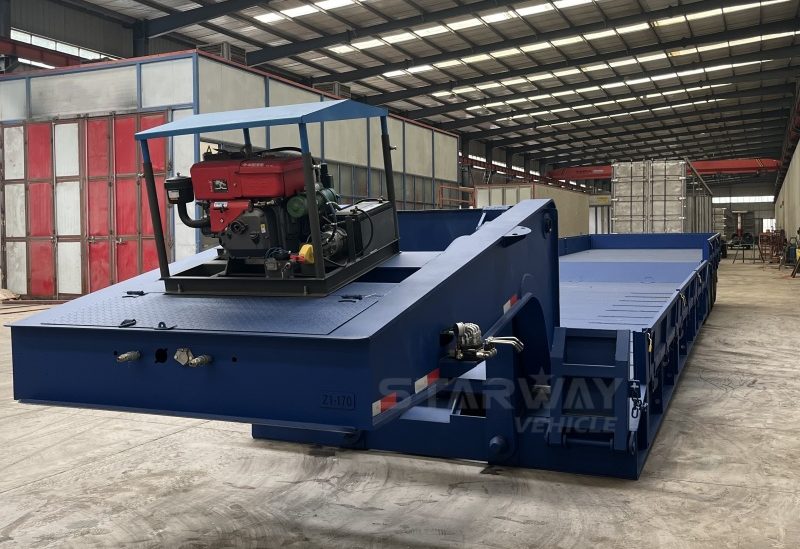

• Hydraulic System: 12 KW diesel engine with hydraulic station
• Ramp Type: Available in spring or hydraulic options
• ABS: Optional
• Valve: WABCO valve
• Lighting: LED lights (designed for international markets)
• Voltage: 24V
• Tool Box: 1 set
• Painting: Polyurethane paint for long-lasting protection against rus

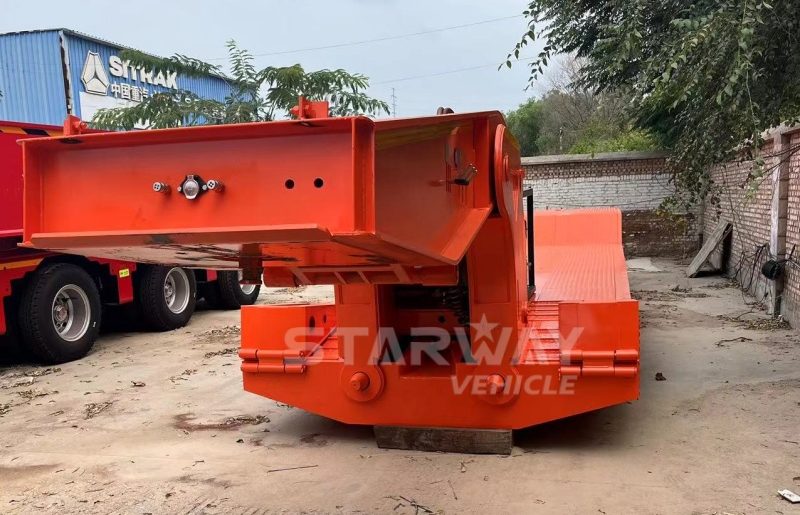

3 axles detachable gooseneck lowbed trailer

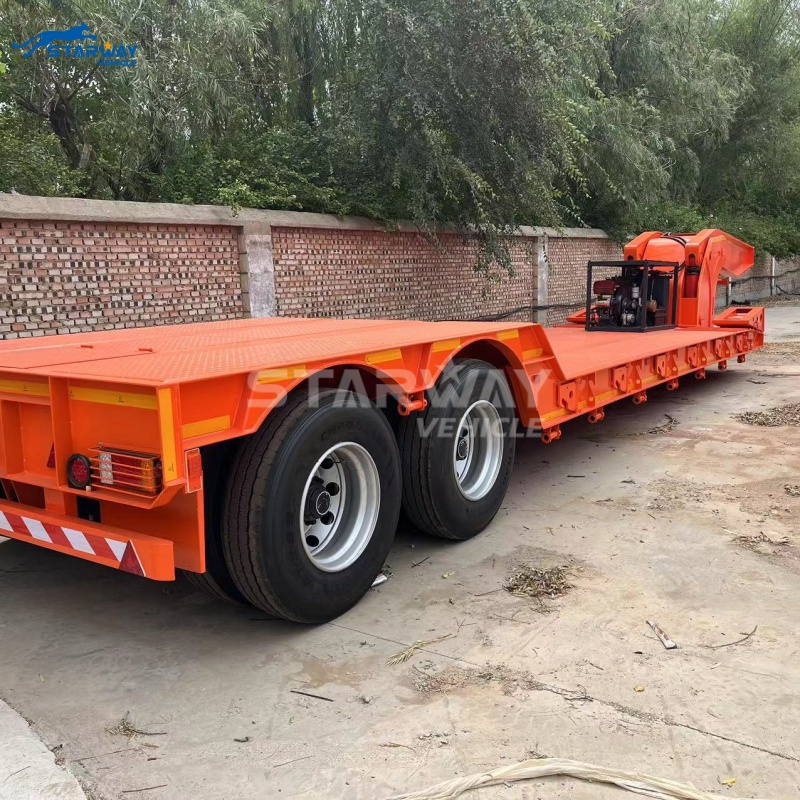

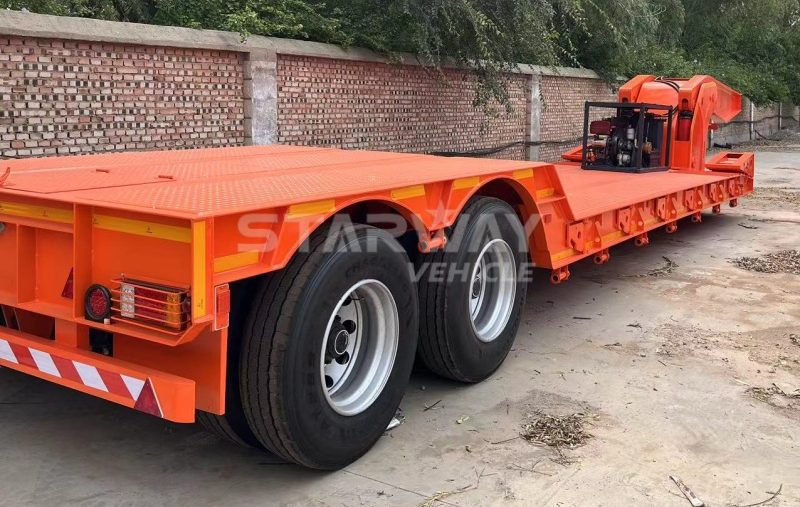

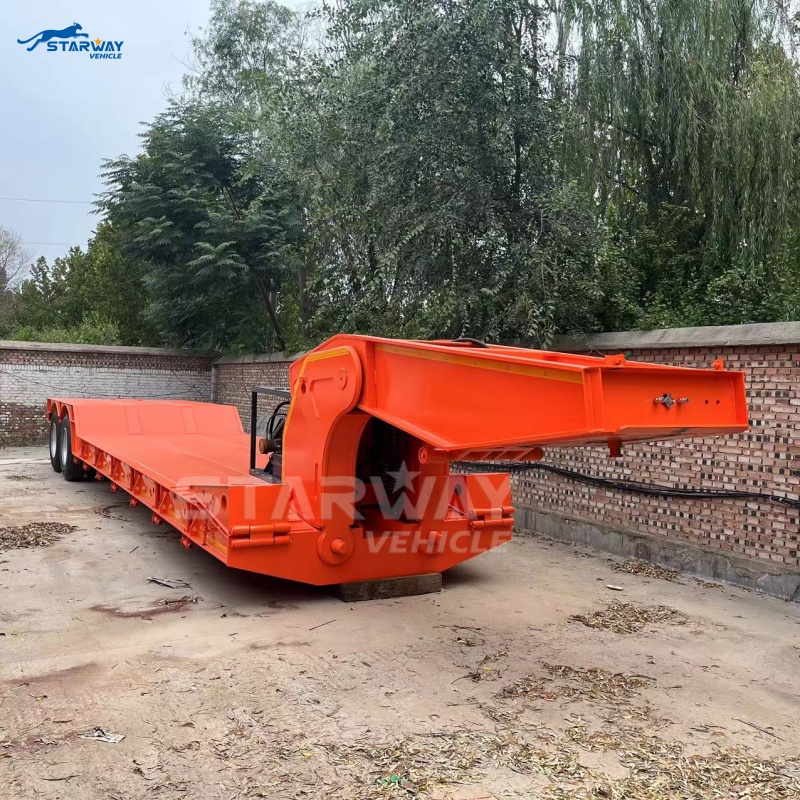

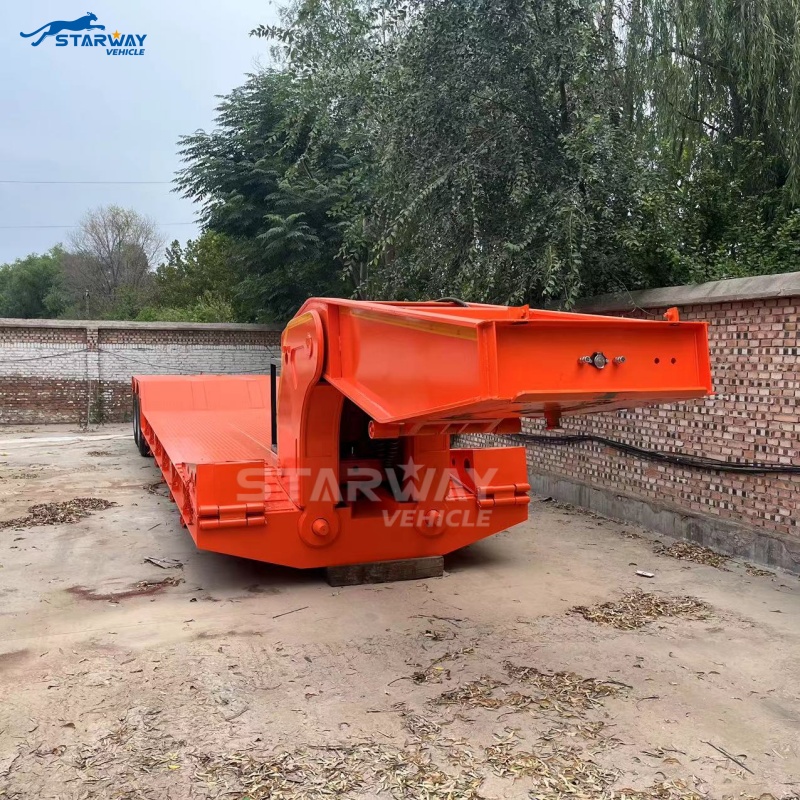

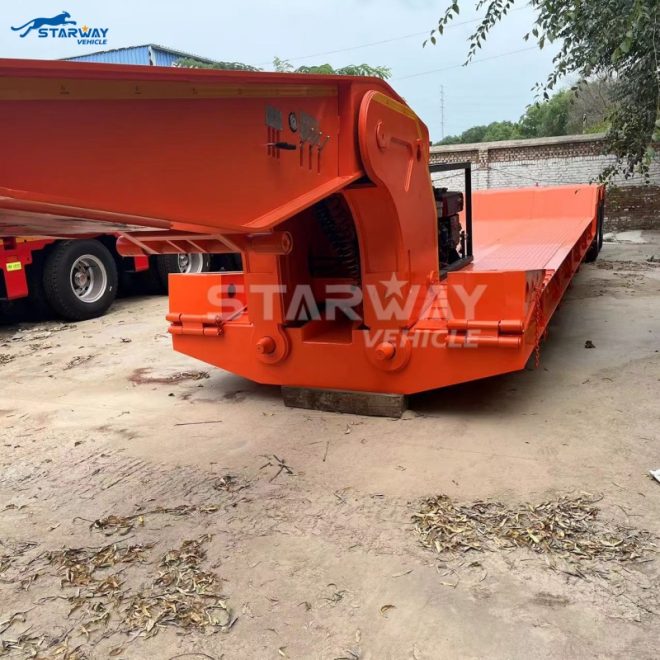

4 axes detachable gooseneck 100 ton lowbed trailer
