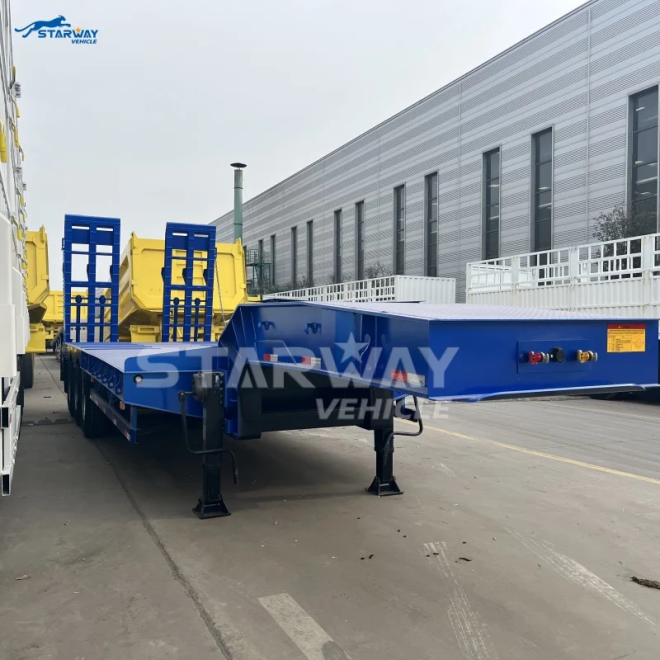

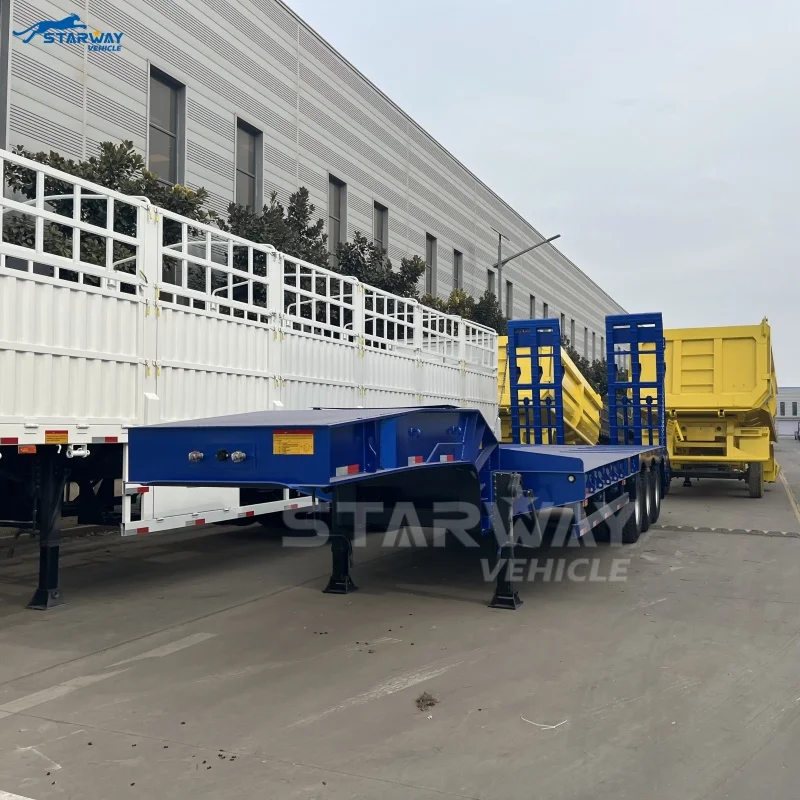

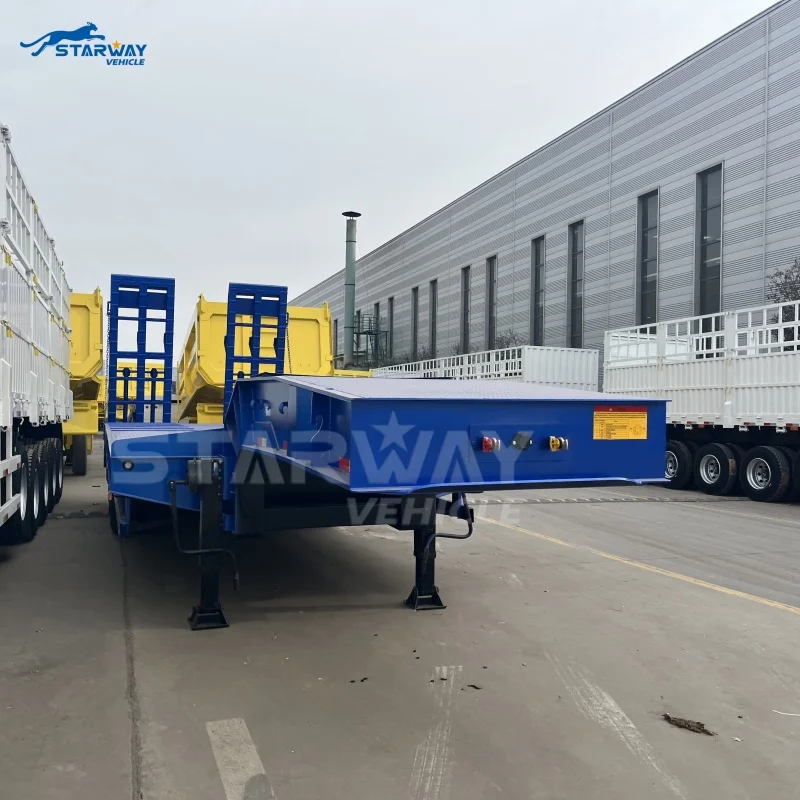

Starway can produce 3-6 axle low bed semi-trailers with loading capacity from 40-150 ton
| Model | SWL03 | |
| Weight: | Tare Weight | 12T |
| Loading capacity | 60 T | |
| Total weight | 72T | |
| Dimensions: | Outside dimension | 13000*3000*2950 mm (The dimensions can been customized according to customer’s request) |
| Frame: | Design/welding technology | Heavy duty and extra durability designed;welding by automatic Submerged-Arc processes. |
| Main beam | Opting for high strength Q345B steel, 520mm deep welded I-section main beams Top Flange thickness 20mm, width 140mm; Bottom Flange thickness 25mm, width 140mm.Middle Flange thickness 12mm; | |
| Cross beam | Heavy duty Special U steel | |
| Side beam | 250mm high I beam | |
| Floor | 5 mm thickness chequer plate | |

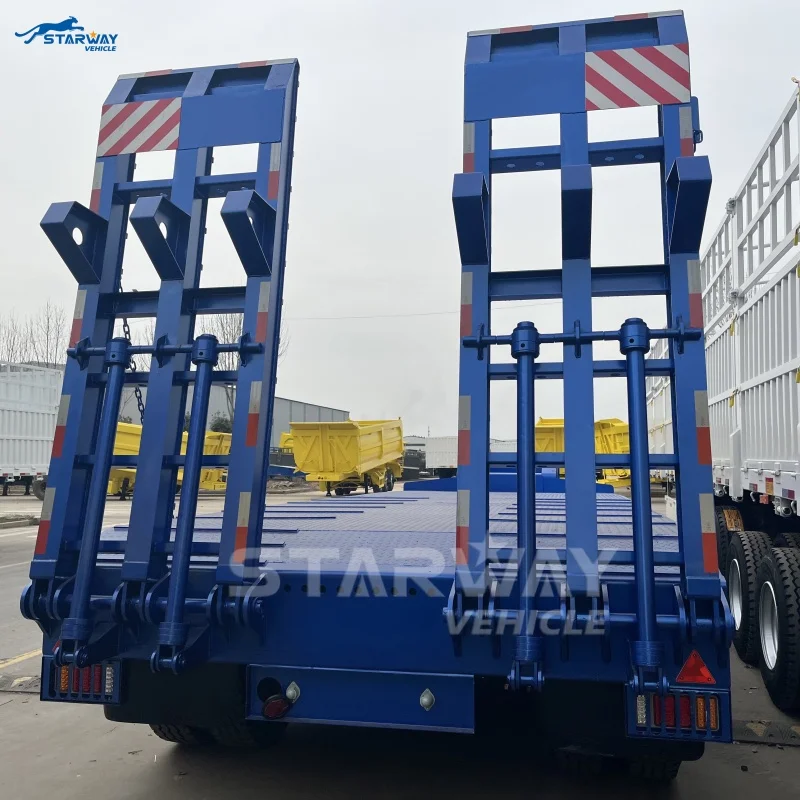

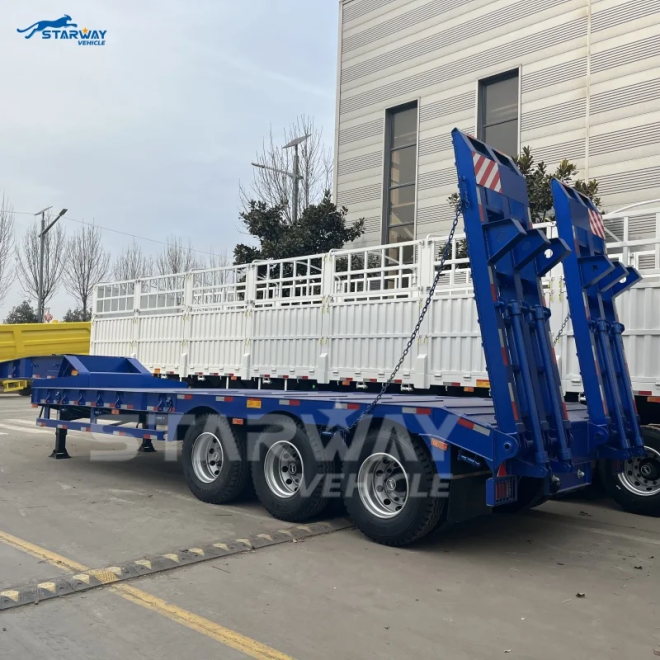

| Rear ladder (ramps) | Two pieces spring steel ladder, (Q345B steel) | |
| OEM parts: | Axle | 3 *16T capacity, FUWA brand (Chinese best brand) |
| King Pin | 2.00’’/3.5’’ bolting king pin, JOST brand | |
| Suspension | Heavy duty undermount suspension with equalizers, American design (high-strength type) | |
| Steel Spring | 12pcs leaf spring, 13mm thickness, 90mm width | |
| Landing legs | JOST brand, manual operation landing legs with sand shoe | |
| Tire specs | 315/80R22.5, Triangle brand (Chinese famous brand) | |
| Rim | 9.0-22.5(Chinese famous brand) | |
| Number of wheel | 17 pieces(including one spare wheel) | |
| Brake system | WABCO relay valve; Six double and two single brake chamber; Two units of ISO standard coppery air-connector. | |
| ABS system | Without（Can be choose freely,450 USD/set） | |
| Electrical: | One unit of 24V 7-pin ISO 1185 socket; LED lights | |
| Miscellaneous: | Painting | color advised by client |
| Marking | Standard | |
| Side Guard | Standard | |
| Spare Tire Carriers | Two set of heavy duty spare wheel carriers | |
| Tools box | One piece (1. 0*0. 5*0. 5m), under the goose neck(with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar) | |
| Note: All the details not mentioned will design as the final confirmation with the customer | ||
