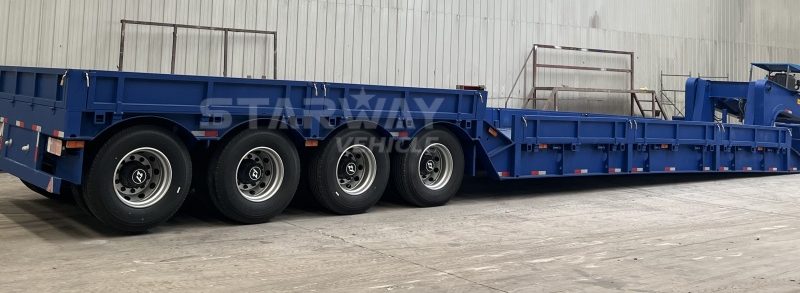

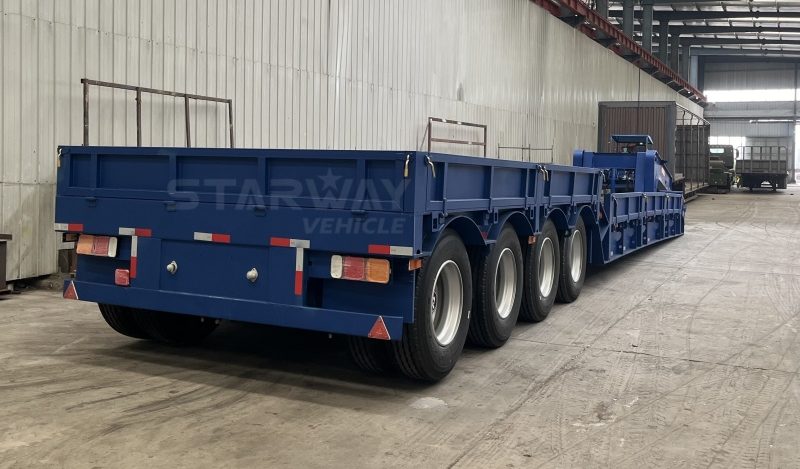

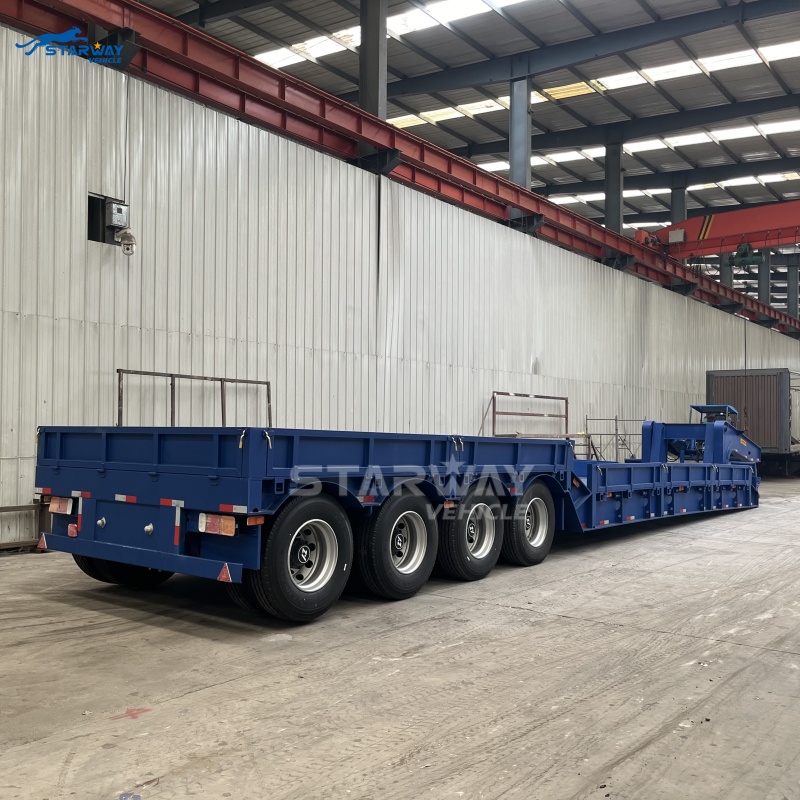

This is Starway 4 Axles removable gooseneck  lowbed trailer which allows the front end of the lowboy trailer to be removed. This design simplifies the loading and unloading process for tall or heavy equipment, It can load 100 ton construction machinery ，such as ,crane truck

Designed to endure heavy weight and stress, the 4-axle or 3 Axles removable gooseneck lowboy trailer is constructed from durable materials, ensuring both longevity and safety during transport.

The Starway Vehicle brand is well-known for its high quality and exceptional customer service, making us a preferred choice for trailer buyers in China and beyond.

Details of 4-Axle 100-Ton  Detachable Gooseneck Lowboy Trailer:

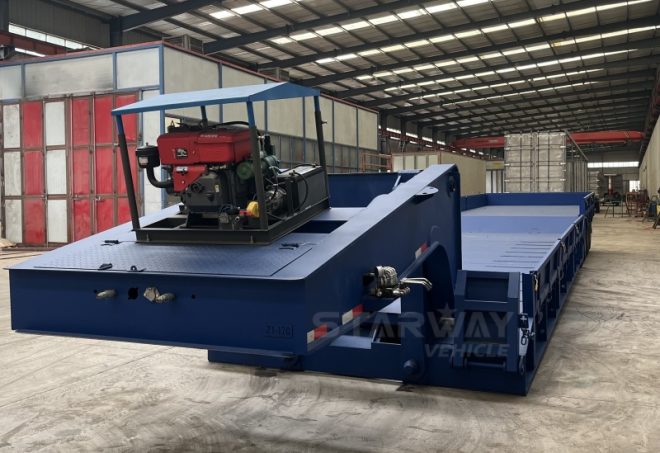

Detachable Neck: The gooseneck section can be removed, making it easier to load tall or oversized equipment.

Low Profile: The low deck design reduces the center of gravity, enhancing stability during transport.

Loading Ramps: Front ramps enable easy loading and unloading of equipment onto the trailer.

Triple Axles: Equipped with Fuwa brand axles or Starway brand ,Bpw brand , ensuring improved weight distribution and higher load capacity.

Specification of 4 axle lowboy trailer

16000-18000×2500-3200×2980mm (According to customer demand , Standard Length is 13500mm )
loading capacity 13 ton axle * 3 / 40-60 ton More configuration requirement please contact supplier
20 ton axle *4 / 80-120 ton
25 ton axle *4 / 100-120 ton
Manufacturer Shandong Starway machinery co., ltd.
Axle specs. 10/12/13/14/16/20/25T , FUWA ,YAHUA , Starway or BPW Brand
Suspension mechanical or air supension (American or German)
Rim 6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20
King Pin JOST 2″ or 3.5″ traction pin
Support legs JOST, FUWA
Wheelbase 7180/6680/6260+1310+1310mm,Or other
Steel Spring 8/8/8, 10/10/10, 12/12/12 pieces per axle
Ladder Manual or hydraulic automatic
Electrical system 24V,7 pin socket,One set 7-core standard Cable
Tire 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 (Other Size / Single Super Tire Contact with Supplier)
Number of Tire 8 or 12 or 16 pieces
Spare Tire Carriers 2 pieces
The material of Main beam Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 Carbon Steel.
Side beam 16mm-25mm channel steel (Material is Q235 carbon steel)
Platform plate 5/6/7 mm Diamond Plate
Brake Kemi Brand of China
Brake Chamber WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); One piece of 45L air tanks
ABS system optional
Light Tail lamp with turn signal, brake light & reflector, side lamp etc
Tool box 1 sets(waterproof type)
Spare tire carrier 1 sets(Patent type)
Color and logo According to customer demand
Painting Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint
Packing Polish with wax before shipping
